Chassis

The steel Italian AMX/3 Specifications

Wheelbase of 105.3 inches (2675 mm) - Front Track 60.6 in. - Rear Track 61.2 in.

Overall Length of 175.6 in (4460 mm) - Overall Width 74.9 in (1902 mm) - Overall Height 43.5 cu. in.

Weight 3090 pounds - Ground Clearance 4.7 in. - Weight Distribution, Front 43.2% / Rear 56.8%

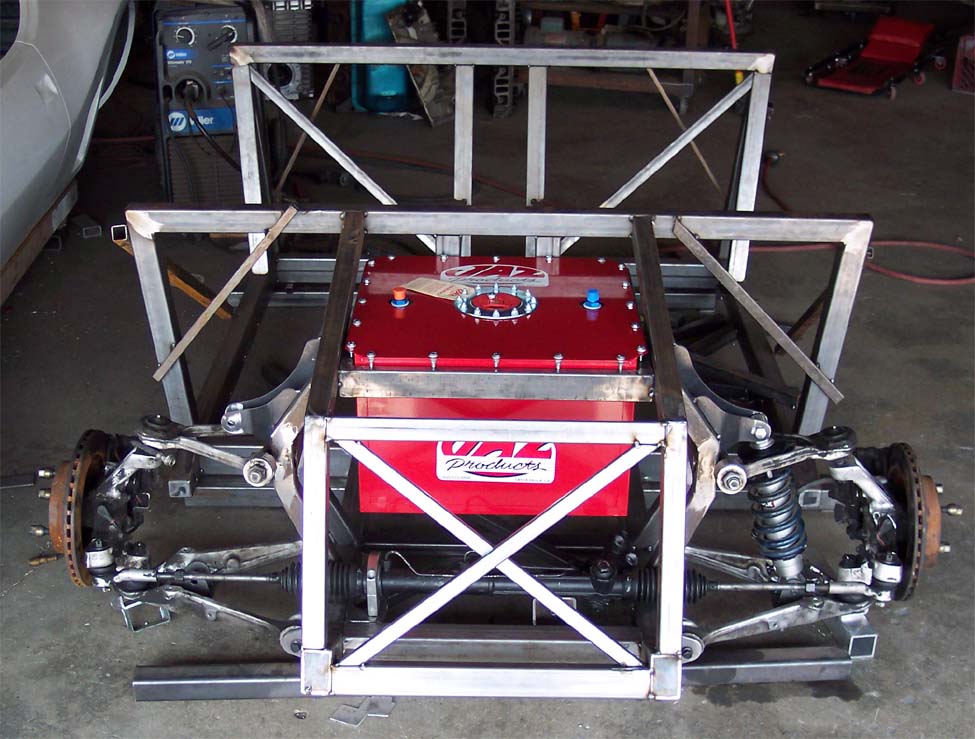

Dave Ward of Precision Welding has been selected as the chassis builder, and he is doing a super job.

Dave is also the Crew Chief for the Big Red Camaro www.bigredcamaro.com

Steering, suspension and brake systems come from the C4 Corvette.

HRE in Vista, makes beautiful wheels that would look much better than the Photoshop simulation you see here.

BigWheels

There are lots of aftermarket parts upgrades for the C4 including, Bear Brakes and Bilstein shocks. As well as custom shops, like Art's, that add Lambo style tilt up doors.

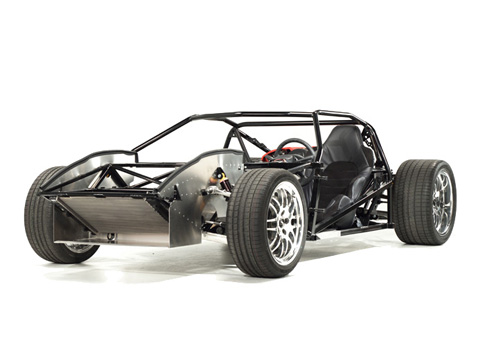

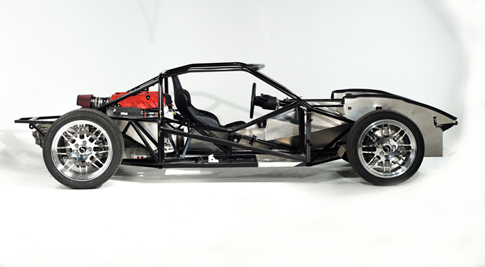

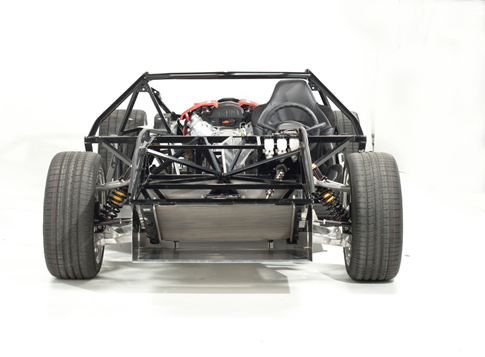

Factory Five in Wareham, MA makes a GTM chassis for a mid-engine V-8 using C5 Corvette spindles, hubs, control arms, rotors etc. The wheelbase is 101 inches and the Track (front/rear) is 60.5 / 62 inches. I spoke with Mike who is an engineer at Factory Five and the design is on computer using Solid works and can be modified for our application.

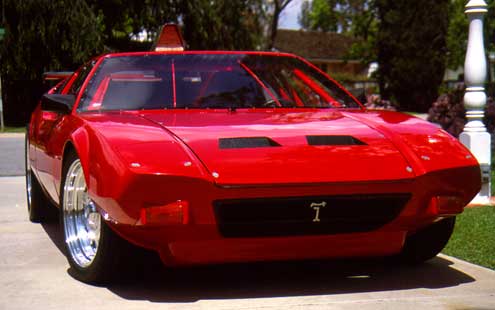

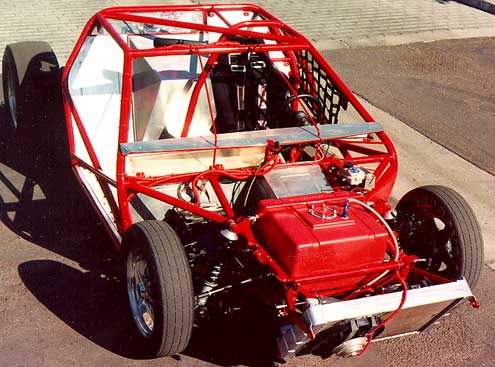

Jerry Sackett built this custom chassis for his Pro Street Pantera.

pan1 pan2

Featured in Hot Rod magazine
